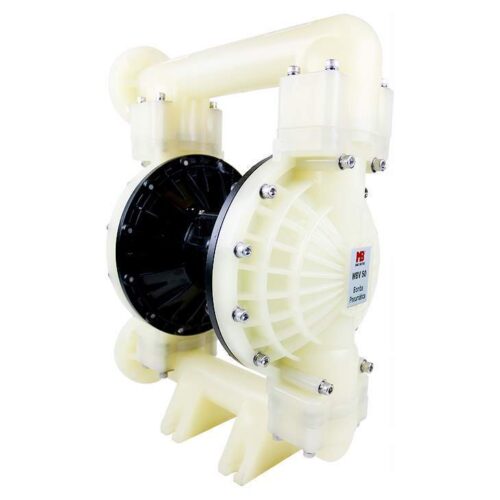

MBV50 PVDF Plastic Center Block Pump
Quality MBV50 PVDF Plastic Center Block Pump suppliers & exporter – all products made in USA.
Description
Features
- 2 in (50.8 mm) ANSI end-porting
- Larger ports for more flow — up to 150 gpm (568 lpm)
- Fluid pressure up to 120 psi (8.4 bar, 0.84 MPa)
- Patented, high-reliability closed center air valve is online serviceable
- Lube-free operation
- Epoxy-coated air section
- External controller for optional remote operation
Typical Applications
- Drum fluid transfer
- Bulk fluid supply
- Chemical evacuation
- Ground water and sump evacuation
- Waste fluid removal
- Tank and bilge drainage
- Slurry and sludge transfer
- Filter press feed
Typical Fluids Handled
- Acids and gases: acetic, chromic, hydrochloric, Hydrofluoric, sulfuric, nitric and phosphoric
- Ship cleaning and stripping chemicals
Parameter
MBV50 PVDF Plastic Center Block Pump - Technical Specifications
| Max Working Pressure | 120psi(0.84Mpa ,8.4bar) |
| Max Flow Rate | 150 gpm(570 lpm) |
| Max Reciprocating Speed | 145cpm |
| Max Suction Height (Dry Suction) | 5m |
| Max Permitted Grain | 6mm |
| Max. Air Consumption | 140scfm(70L/s) |
| Air Inlet size | 1/2 in.npt(f) |
| Air Outlet size | 1/2 in.npt(f) |
| Fluid Inlet size | 2 in.npt(f) |
| Fluid Outlet size | 2 in.npt(f) |
| Weight | PVDF Pump 30.5kg |
