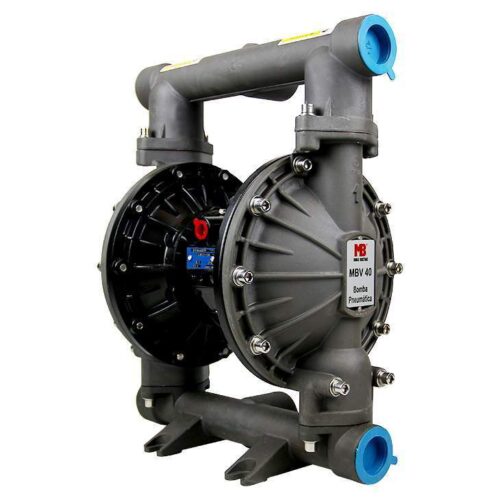

MBV40 Stainless Full Steel Center Block Pump
You can buy good quality MBV40 Stainless Full Steel Center Block Pump, we are the best distributor from USA market.
Description
Features
- 1-1/2 in (38.1 mm) end-porting
- High flow – 100 gpm (378 lpm) in a compact, portable size
- Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
- Patented, high-reliability closed center air valve is online serviceable
- Lube-free operation
- Epoxy-coated air section
- External controller for optional remote operation
- Stainless steel center section for corrosive applications
Typical Applications
- Moving fluids ranging from slow moving to very flowable
- Evacuating food process mixing kettles
- Transferring of ingredients from original containers to mixing tanks
- Evacuating liquid concentrates from shipping tankers to holding vessels
- Repackaging fluids from original containers to smaller receptacles
Typical Fluids Handled
- Concentrated fruit juice
- Pizza paste
- Wine
- Oil
- Jams & jellies
- Pastes and starches
- Corn syrup
- Mineral oil
- Lanolin alcohol
- Glycol
- Pudding
- Chocolate
Parameter
MBV40 Stainless Full Steel Center Block Pump - Technical Specifications
| Max Working Pressure | 100psi(0.7Mpa ,7bar) |
| Max .flow Rate | 90 gpm(340 lpm) |
| Max Reciprocating Speed | 200cpm |
| Max.Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 5mm |
| Max Air Consumption | 125scfm(3.5m³/min) |
| Air Inlet size | 1/2 in.npt(f) |
| Air Outlet size | 1/2 in.npt(f) |
| Fluid Inlet size | 11/2 in.npt(f) |
| Fluid Outlet Size | 11/2 in.npt(f) |
| Weight | Stainless steel pump 29.0kg Aluminum pump 16.0kg |
Diagram
Installation
