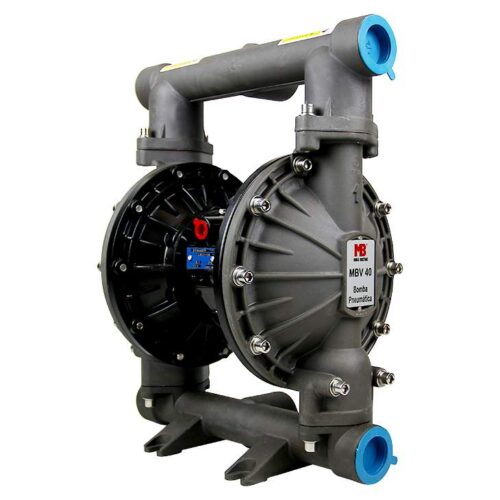

MBV40 Diaphragm Pump Ductile Iron
Quality MBV40 Diaphragm Pump Ductile Iron suppliers & exporter – all products made in USA.
Description
Features
- 1-1/2 in (38.1 mm) end-porting
- High flow – 100 gpm (378 lpm) in a compact, portable size
- Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
- Patented, high-reliability closed center air valve is online serviceable
- Lube-free operation
- Epoxy-coated air section
- External controller for optional remote operation
Typical Applications
- Filter press
- Tank stripping
- Bilge pumping
- Sand and ball mill pumping
- Oil transfer and oil skimming
- Chemical plating
Typical Fluids Handled
- Latex
- Abrasive fluids
- Slurries: petroleum, lime, clay, ferrite, salt/brine and pumice
- Sludge: secondary and clarifier
- Pottery slip
Parameter
MBV40 Diaphragm Pump Ductile Iron - Technical Specifications
| Max Working Pressure | 120psi(0.84Mpa ,8.4bar) |
| Max Flow Rate | 118 gpm(446 lpm) |
| Max Reciprocating Speed | 200cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 5mm |
| Max. Air Consumption | 80scfm(40L/s) |
| Air Inlet size | 1/2 in.npt(f) |
| Air Outlet size | 1/2 in.npt(f) |
| Fluid Inlet size | 11/2 in.npt(f) |
| Fluid Outlet size | 11/2 in.npt(f) |
| Weight | Aluminum pump 16kg; Stainless steel 29.0kg Ductile Iton 33kg |
Diagram
Installation
