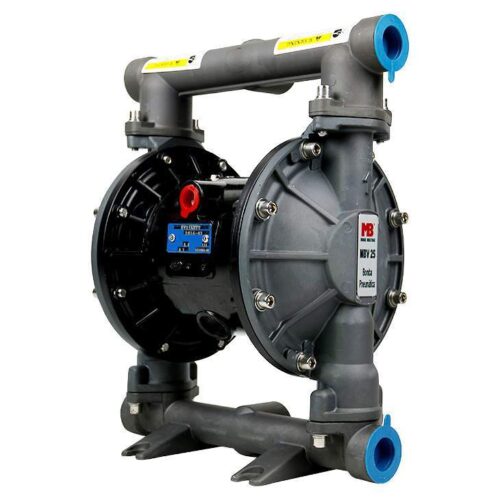

MBV25 Stainless Steel Center Block Pump
Quality MBV25 Stainless Steel Center Block Pump suppliers & exporter – all products made in USA.
Description
Features
- 1 in (25.4 mm) center- and end-porting
- High flow – 40 gpm (151 lpm) in a compact, portable size
- Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
- Epoxy-coated center section for corrosive environments
- Equipped with an effective and reliable air valve system
- External controller for optional remote operation
Typical Applications
- Drum fluid transfer
- Unloading fluids
- Chemical evacuation
- Ceramic glaze supply
- Dewatering and sump evacuation
- Tank and sump drainage
Typical Fluids Handled
- Chemicals
- Contaminated surface water
- Adhesives, varnishes, dispersions, solvents and stains
- Resins, latexes, wood preservative stains, concrete paints and primers
- Ceramic slips and slurries
Parameter
MBV25 Stainless Steel Center Block Pump - Technical Specifications
| Max Working Pressure | 120psi(0.84Mpa ,8.4bar) |
| Max Flow Rate | 40 gpm(150 lpm) |
| Max Reciprocating Speed | 276cpm |
| Max Suction Height(Dry Sucking) | 5.48m |
| Max Permitted Grain | 4mm |
| Max.Air Consumption | 45scfm(22.5L/s) |
| Air Inlet size | 1/2 in.npt(f) |
| Air Outlet size | 1/2 in.npt(f) |
| Fluid Inlet size | 1 in.npt |
| Fluid Outlet size | 1 in.npt(f) |
| Weight | Aluminum pump 8.2kg Stainless steel 15kg |
Diagram
Installation
