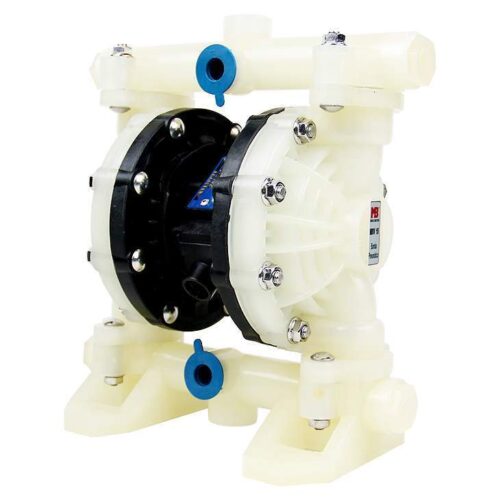

MBV15 PVDF Plastic Center Block Pump
Before shipping, Emoclew America MBV15 PVDF Plastic Center Block Pump are packed with strong wooden case with waterproof cloth to avoid any damage.
Description
Features
- 1/2 in (12.7 mm) center- and end-porting
- No seals to leak or fail
- Quiet running — less than 85 dB with easy-to-use remote muffler capability for even lower noise levels
- High flow rates in a small, portable package
- External controller for optional remote operation
Typical Applications
- Machine lubrication servicing
- Drum evacuation
- Plating and dip tanks
- Water treatment
Typical Fluids Handled
- Cleaning fluids and detergents
- Chemicals
- Ceramic glazes
- Inks
- Solvents and flammables
- Acids and bases
Parameter
MBV15 PVDF Plastic Center Block Pump - Technical Specifications
| Max Working Pressure | 100psi(0.7Mpa ,7bar) |
| Max Flow Rate | 15gpm(57lpm) |
| Max Reciprocating Speed | 400cpm |
| Max Suction Height (Dry Sucking) | 4.5m |
| Max Permitted Grain | 3/32in.(2.5mm) |
| Max.Air Consumption | 20gpm(10L/s) |
| Air Inlet size | 1/4in.npt(f) |
| Air Outlet size | 3/8in.npt(f) |
| Fluid Inlet size | 1/2 in.npt(f)or bspt(f) |
| Fluid Outlet size | 1/2 in.npt(f)or bspt(f) |
| Weight | PVDF pump 3.7kg PP pump 2.7kg |
Diagram
Installation
