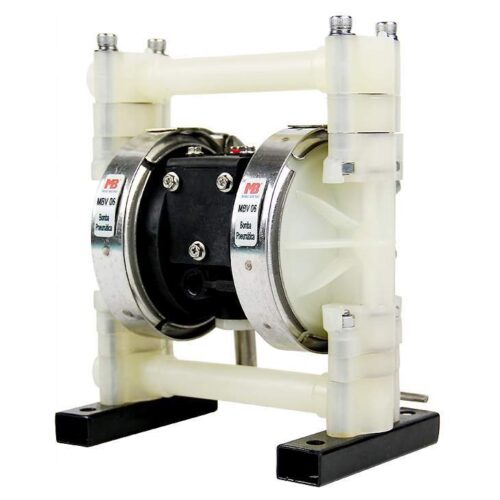

MBV06 PP Plastic Center Block Pump
As the best USA MBV06 PP Plastic Center Block Pump supplier, Emoclew America provides quality MBV06 PP Plastic Center Block Pump to global clients.
Description
Features
- 1/4 in (6.35 mm) end-porting
- Low-cost, compact design
- Spring check valves for superior priming in any mounting configuration
- True-formed PTFE and Santoprene diaphragms for enhanced performance
- External controller for optional remote operation
Typical Applications
- Supply pump for OEM applications
- Printing ink supply
- Wastewater chemical supply
- Plating/surface finishing
- Chemical dosing
Typical Fluids Handled
- Waterborne materials, some HHC’s
- Paints, coatings, inks and dyes
- Car wash chemicals
- Laundry chemicals and detergents
- Chemicals
- Inks
Diagram
MBV06 PP Plastic Center Block Pump - Technicial Specifications
| Max Working Pressure | 100psi(0.7Mpa ,7bar) |
| Max Flow Rate | 4.5gpm(17lpm) |
| Max Reciprocating Speed | Dry running320cpm; Wet running250cpm |
| Max Suction Height (Dry Sucking) | 3m |
| Max Permitted Grain | 1.5mm |
| Max Air Consumption | 7.0scfm(3.5L/s) |
| Air Inlet Size | 1/4in.npt(f)1/4in.bsp(f) |
| Air Outlet Size | 1/4in.npt(f)1/4in.bsp(f) |
| Fluid Inlet Size | 1/4in.npt(f)1/4in.bsp(f) |
| Fluid Outlet Size | 1/4in.npt(f)1/4in.bsp(f) |
| Weight | PP pump 1.1kg |
Installation
Parameter
