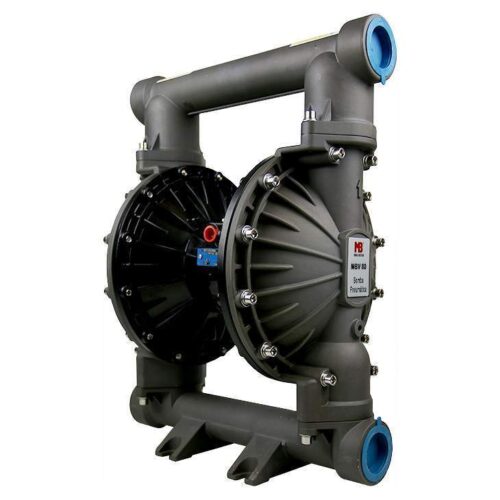

MBV80 Diaphragm Pump Ductile Iron
As a specialist of MBV80 Diaphragm Pump Ductile Iron, Emoclew America can offer you comprehensive selections of goods in this industry.
Description
Features
- 3 in (76.2 mm) ANSI center-porting that is internally threaded 3 npt or bspt
- Bolted leak-free, flanged connections — no clamp bands used
- Large flow paths for high viscosities
- Easy air valve maintenance
- Heavy-duty construction
- Fluid flow up to 275 gpm (1040 lpm)
Typical Applications
- Chemical transfers
- Filter press-feed
- Dewatering
Typical Fluids Handled
- Chemicals
- Bulk paint resins
- Ceramic slip
Parameter
MBV80 Diaphragm Pump Ductile Iron - Technical Specifications
| Max Working Pressure | 120psi(0.84Mpa ,8.4bar) |
| Max Flow Rate | 275 gpm(1041 lpm) |
| Max reciprocating Speed | 135cpm |
| Max.Suction Height (Dry Sucking) | 5m |
| Max.permitted Grain | 9.4mm |
| Max Air Consumption | 180scfm(90L/s) |
| Air Inlet size | 3/4 in.npt(f) |
| Air Outlet size | 1 in.npt(f) |
| Fluid Inlet size | 3 in.npt(f) |
| Fluid Outlet size | 3 in.npt(f) |
| Weight | Aluminum pump 77kg; Stainless steel 110.0kg; Ductile Iton 180kg |
