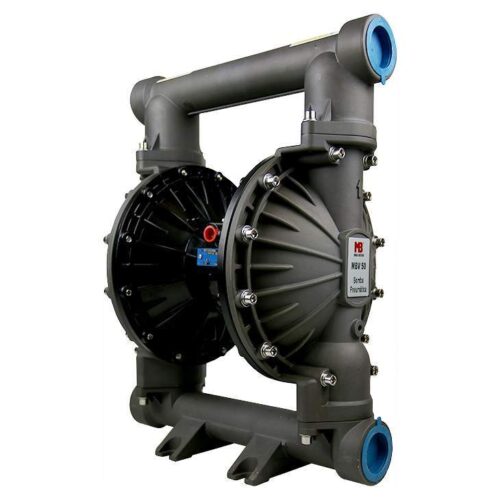

MVB50 Stainless Full Steel Center Block Pump
Hot MVB50 Stainless Full Steel Center Block Pump – Emoclew America is the best MVB50 Stainless Full Steel Center Block Pump supplier in USA.
Description
Features
- 2 in (50.8 mm) end-porting
- Larger ports for more flow – up to 150 gpm (568 lpm)
- Fluid pressure up to 120 psi (8.4 bar, 0.84 MPa)
- Patented, high-reliability closed center air valve is online serviceable
- Lube-free operation
- Epoxy-coated air section
- External controller for optional remote operation
Typical Applications
- Moving fluids ranging from very slow moving to very flowable
- Evacuating food process mixing kettles
- Transferring ingredients from original containers to mixing tanks
- Evacuating liquid concentrates from shipping tankers to holding vessels
Typical Fluids Handled
- Concentrated fruit juice
- Tomato paste
- Wine
- Oil
- Jams & jellies
- Pastes and starches
- Corn syrup
- Glycol
- Thick sauce
- Pudding
- Chocolate
- Fruit filling
Parameter
MVB50 Stainless Full Steel Center Block Pump - Technical Specifications
| Max Working Pressure | 100psi(0.7Mpa ,7bar) |
| Max Flow Rate | 150 gpm(570 lpm) |
| Max Reciprocating Speed | 145cpm |
| Max Suction Height (Dry Sucking) | 5m |
| ax Permitted Grain | 6mm |
| Max Air Consumption | 175scfm(4.9m³/min) |
| Air Inlet size | 1/2 in.npt(f) |
| Air Outlet size | 1/2 in.npt(f) |
| Fluid Inlet size | 2in.npt(f) |
| Fluid Outlet size | 2in.npt(f) |
| Weight | Aluminum Pump 29.0kg Stainless Steel Pump 47.0kg |
Diagram
Installation
