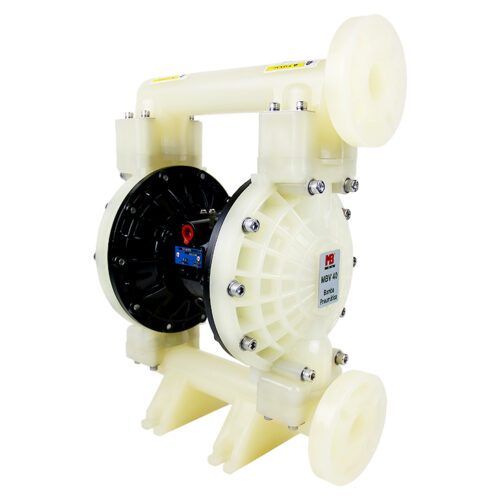

MVB40 Plastic Center Block Pump
Hot MVB40 Plastic Center Block Pump – Emoclew America is the best MVB40 Plastic Center Block Pump supplier in USA.
Description
Features
- 1-1/2 in (38.1 mm) end-porting
- High flow – 100 gpm (378 lpm) in a compact, portable size
- Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
- Patented, high-reliability closed center air valve is online serviceable
- Lube-free operation
- Epoxy-coated air section
- External controller for optional remote operation
Typical Applications
- Tank transfer
- Tank stripping
- Chemical tank plating
- Transferring high temperature acids and gases
Typical Fluids Handled
- Chemicals
- Corrosive fluids
- Acids and gases: acetic, chromic, hydrochloric, hydrofluoric, sulfuric, nitric and phosphoric
Parameter
MVB40 Plastic Center Block Pump - Technical Specifications
| Max Working Pressure | 120psi(0.84Mpa ,8.4bar) |
| Max Flow Rate | 118 gpm(446 lpm) |
| Max Reciprocating Speed | 200cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 5mm |
| Max. Air Consumption | 80scfm(40L/s) |
| Air Inlet size | 1/2 in.npt(f) |
| Air Outlet size | 1/2 in.npt(f) |
| Fluid Inlet size | 11/2 in.npt(f) |
| Fluid Outlet size | 11/2 in.npt(f) |
| Weight | PVDF pump 20.0kg PP pump 16.0kg |
Diagram
Installation
