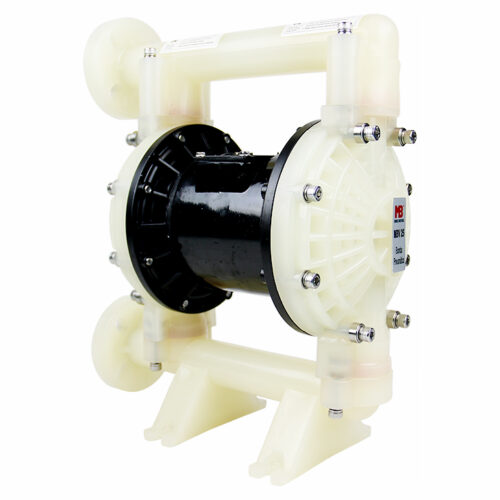

MVB25 Plastic Center Block Pump
You can buy good quality MVB25 Plastic Center Block Pump, we are the best distributor from USA market.
Description
Features
- 1 in (25.4 mm) end-porting
- High flow – 40 gpm (151 lpm) in a compact, portable size
- Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
- Epoxy-coated center section
- External controller for optional remote operation
Typical Applications
- Drum fluid transfer
- Unloading fluids
- Transferring high temperature acids
- Chemical evacuation
- Tank and sump drainage
- Circulating plating chemical tank
Typical Fluids Handled
- Chemicals
- Acetic acid
- Chromic acid
- Hydrochloric acid
- Hydrofluoric acid
- Sulfuric acid
- Nitric acid
- Phosphoric acid
Parameter
MVB25 Plastic Center Block Pump - Technical Specifications
| Max Working Pressure | 120psi(0.84Mpa ,8.4bar) |
| Max Flow Rate | 40gpm(150lpm) |
| Max Reciprocating Speed | 276cpm |
| Max Suction Height (Dry Sucking) | 5.48m |
| Max Permitted Grain | 4mm |
| Max.Air Consumption | 45scfm(22.5L/s) |
| Air Inlet size | 1/2in.npt(f) |
| Air Outlet size | 1/2in.npt(f) |
| Fluid Inlet size | 1 in.npt(f) |
| Fluid Outlet size | 1 in.npt(f) |
| Weight | PVDF pump 10.0kg; PP pump 8.0kg |
