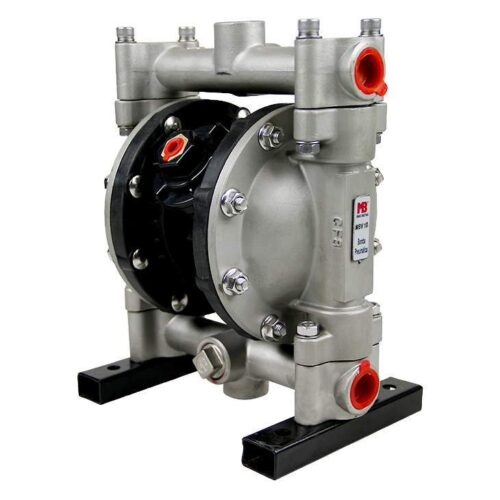

MBV10 Aluminium
Hot MBV10 Aluminium – Emoclew America is the best MBV10 Aluminium supplier in USA.
Description
Features
- 3/8 in (9.52 mm) end-porting
- Fully-groundable acetal model
- Delivery up to 7 gpm (26.5 lpm)
- Operates on as little as 12 psi (0.8 bar, 0.08 MPa) air pressure
- Quiet operation
Typical Applications
- Drum transfer for fluids up to 1000 centipoise
- Circulation of low viscosity inks, stains and dyes
- Coolant circulation and evacuation
- Waste fluid removal
- On-demand batch chemical metering
- Low viscosity adhesive supply
- Consistent low pressure air spray or HVLP supply
Typical Fluids Handled
- Paints
- Lubricants
- Inks
- Stains
- Solvents
- Coatings
- Dyes
Parameter
MBV10 Aluminium - Technical Specifications
| Max Working Pressure | 100psi(0.7Mpa ,7bar) |
| Max Flow Rate | 10.5gpm(38lpm) |
| Max Reciprocating Speed | 330cpm |
| Max Suction Height (Dry Sucking) | Dry3.7m; Wet6.4m |
| Max Permitted Grain | 1/16in.(1.6mm) |
| Max.Air Consumption | 18scfm(9L/s) |
| Air Inlet size | 1/4in.npt(f) |
| Air Outlet size | 1/4in.npt(f) |
| Fluid Inlet size | 3/8in.npt(f) |
| Fluid Outlet size | 3/8in.npt(f) |
| Weight | Aluminum pump 3.9kg |
Diagram
Installation
